Slurry Separators

In liquid/solid separation applications, such as wastewater treatment, industrial processes, and mining operations, achieving efficient separation of solids from liquids is essential for maintaining process efficiency, product quality, and environmental compliance. Slurry separators are critical components in these applications, offering numerous benefits that optimize separation performance and enhance overall operations.

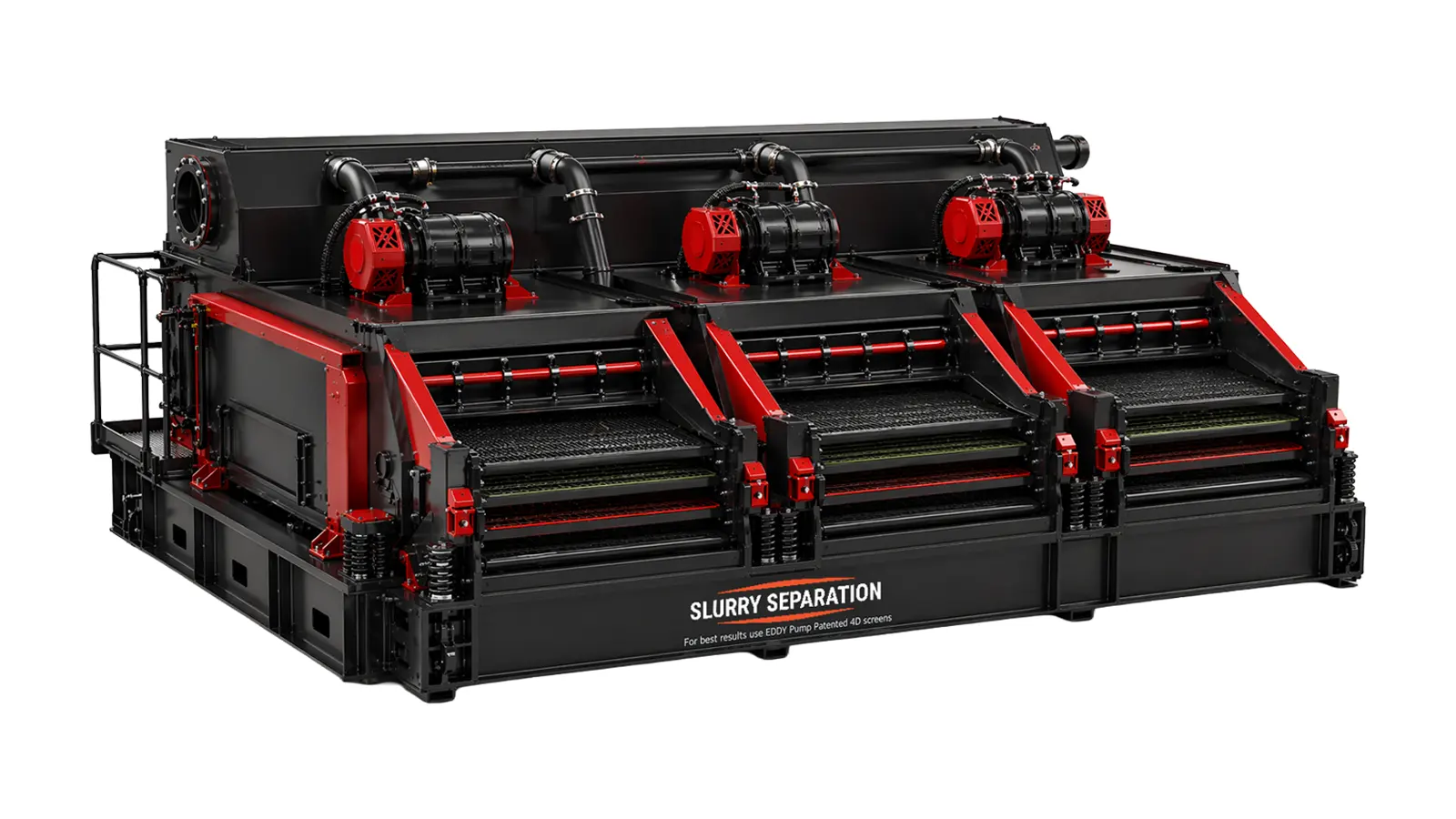

S-Force 1000 Slurry Separator

Slurry Separation reassures its commitment to the industry by providing powerful, high performing long-life equipment with low maintenance requirements in the shape of the S-Force 1000 slurry separator.

The S-Force 1000 offers high end features for a surprisingly low cost, including:

Specialized pretensioned composite frame screen with gear unit for fast screen change and longer screen life
Heavy duty design allows the shaker basket to adjust available G Force to 8.0
Integrated vibratory motors with powerful, high G force performance
Patented shaker screen seal not only helps keep fine solids from passing – it also makes maintenance far easier
Mechanical deck angle adjustment on the fly enables you to work with different drilling fluids
Stainless steel shaker locking system
Rubber coated vibration spring eliminates noise

Find out more

Specifications


Capacity GPM (m³/h)	616 (140)


Vibration Motor (Kw)	2×1.72


Screen Quantity (Pcs):	4


Screen Size: in (mm)	23 x 45.9 x 1.6 (585x1165x40)


Screen Area ft2 (m2):	29.4 (2.73)


Adjustable G Force:	≤7.5G


Vibration Amplitude in (mm):	0.2-0.3 (5-7)


Deck Angle:	-1~+5°


Feeder Type:	Weir Feeder


Weir Height ft (mm)	2.94 (895)


EX Standard	ExdIIBT4/IECEX/ATEX


Weight Lbs (Kg)	4213 (1911)


L×W×H(mm)	9.8 x 6.6 x 4.7 (2990x2020x1437)


Specifications/Datasheet

More Key Facts About Slurry Separators

When you have projects that require serious separation of liquids and solids, nothing beats slurry separators like the S-Force 1000 for strong, effective results. What’s more, these separators have a fantastic track record and monster benefits for Oil and Gas drilling, and feature prominently in Mining operations and other industries you might not expect, including Agriculture.

Easy Operation

By far, the S-Force 1000 is built to provide the easiest, most maintenance-free operation over the long term, providing cost-effective slurry separation unmatched by machines in its price range. But, taking maximum advantage of any slurry separator requires a learning curve that is well worth navigating.

Here are some important articles to check out if you’re new to slurry separators (shale shakers):

Find out more

Frequently Asked Questions

What is a slurry separator?

A slurry separator is a piece of equipment used to separate solid particles from liquid in slurry mixtures. It helps in reducing the solid content in the liquid phase, making the separation process more efficient for disposal, recycling, or further processing.

How do slurry separators work?

Slurry separators operate by using mechanical processes like centrifugation, vibration, or filtration to separate the solid and liquid components of a slurry. The specific method used depends on the characteristics of the slurry and the separation requirements.

What types of slurry separators are available?

Common types of slurry separators include decanter centrifuges, screw presses, vibrating screens, hydrocyclones, and filter presses. Each type has unique advantages depending on the slurry’s consistency and separation needs.

Which industries commonly use slurry separators?

Slurry separators are widely used in industries such as mining, agriculture, construction, wastewater treatment, and food processing. They are essential for efficient material handling and waste management.

What are the benefits of using slurry separators?

Using slurry separators improves the efficiency of material handling processes, reduces waste disposal costs, enhances the quality of recovered products, and helps meet environmental regulations by reducing the amount of waste generated.

Can slurry separators handle high-viscosity slurries?

Yes, certain types of slurry separators, such as decanter centrifuges and screw presses, are designed to handle high-viscosity slurries effectively, ensuring efficient separation even in challenging conditions.

What factors should be considered when choosing a slurry separator?

Key factors to consider include the type of slurry (particle size, viscosity, solid-to-liquid ratio), desired separation efficiency, flow rate, and maintenance requirements. The specific application and industry regulations may also influence the choice of equipment.

How does a decanter centrifuge compare to a screw press for slurry separation?

Decanter centrifuges are typically used for slurries with fine particles and high solid content, offering high separation efficiency. Screw presses are more suited for slurries with larger particles and lower solid content, providing a simpler and more cost-effective solution.

What maintenance is required for slurry separators?

Regular maintenance of slurry separators includes cleaning the equipment, checking for wear and tear on critical components, and ensuring that the settings are optimized for efficient separation. Preventive maintenance helps extend the equipment’s lifespan and improve performance.

Are slurry separators energy-efficient?

Many modern slurry separators are designed for energy efficiency, using optimized processes to reduce power consumption while maintaining high separation performance. The energy efficiency can vary depending on the type of separator and the application.
